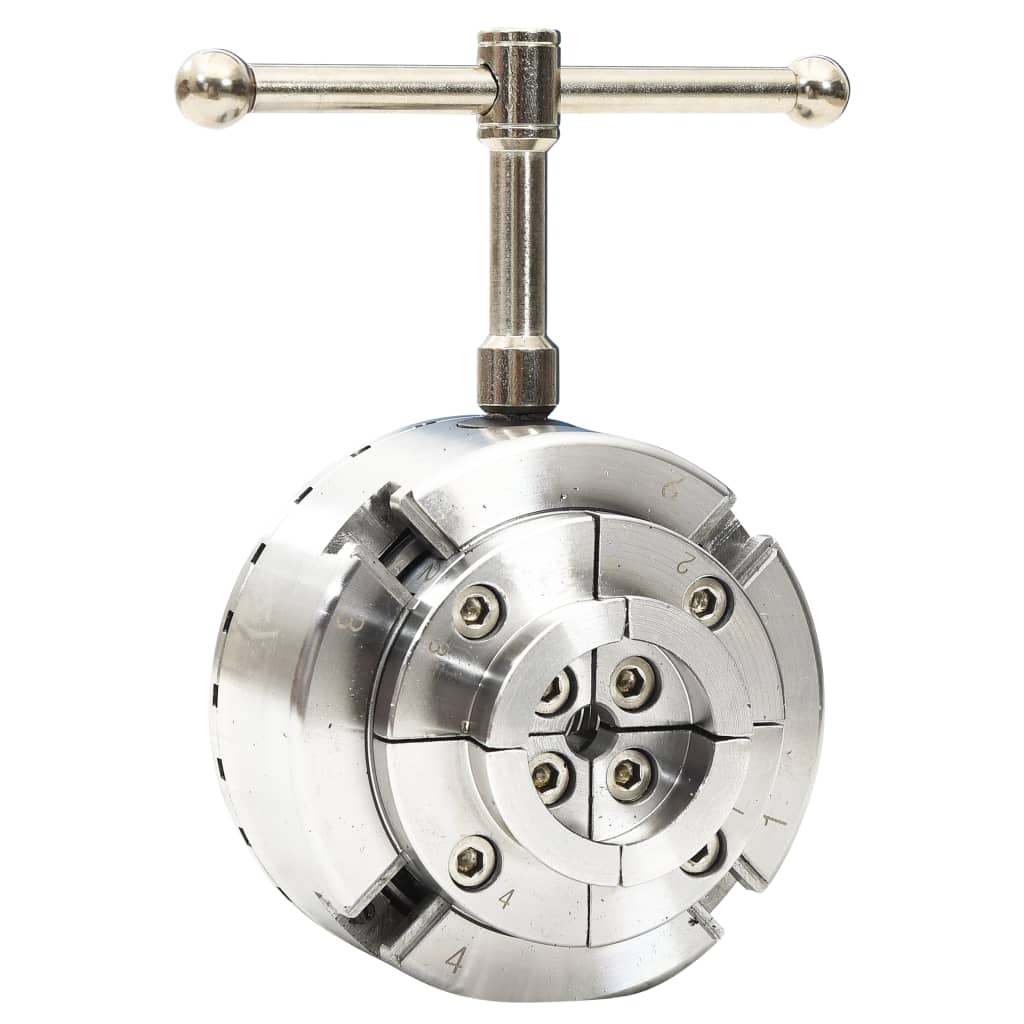

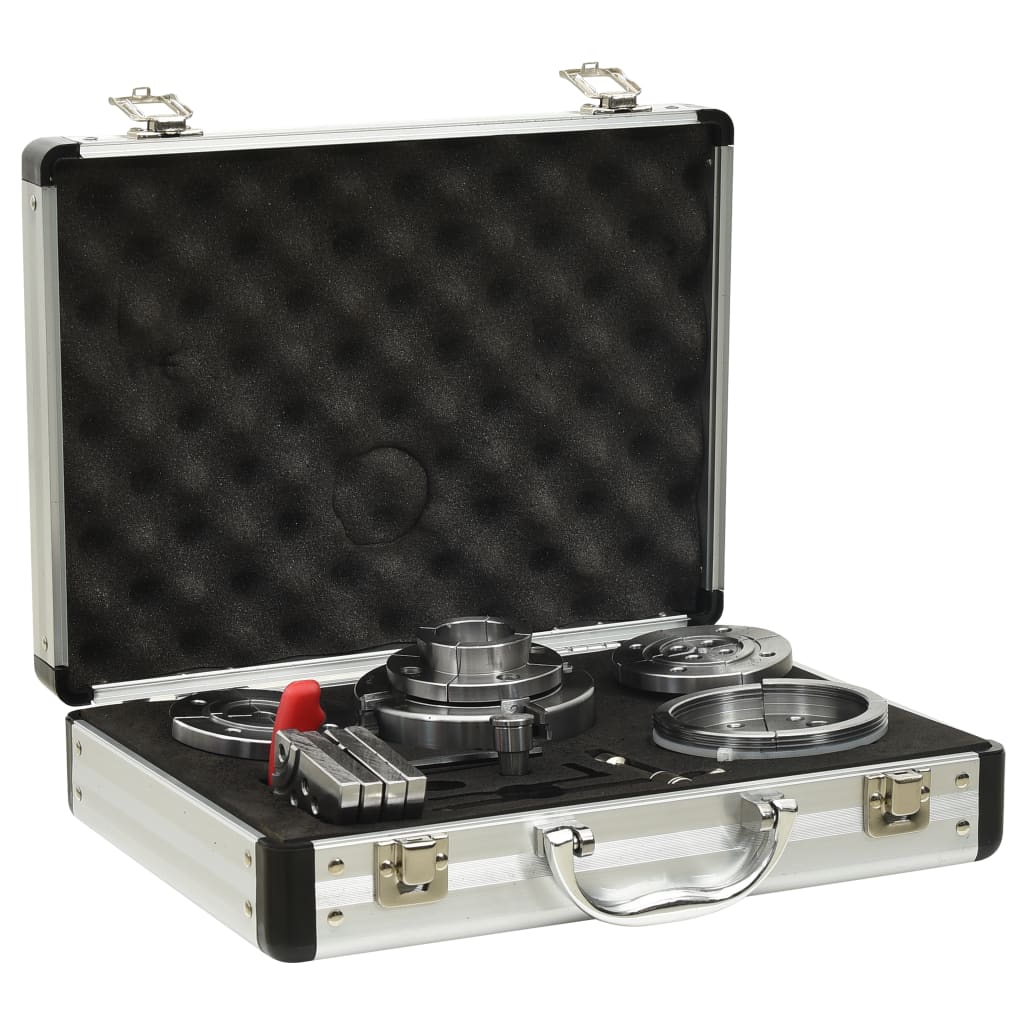

This 95 mm (3.75 inch) jaw chuck set is a mechanical device for clamping a workpiece on a wood lathe. Made of steel, the lathe chuck set is durable and robust. As a lathe accessory, it utilizes the radial movement of the movable jaws, which are evenly distributed throughout the chuck, to clamp and position the workpiece. This chuck set includes a self-centering 4-jaw chuck and interchangeable jaws for wood spindles, bowls, and difficult-to-clamp workpieces. The set is suitable for a 1" x 8 TPI spindle.
- Color: Red and Black
- Material: steel
- Number of jaws: 4
- Self-centering
- Clamping diameter: 95 mm (3.75 inches)
- Case dimensions: 30.5 x 22.5 x 7.5 cm (L x W x H)
- Clamping range (inside):

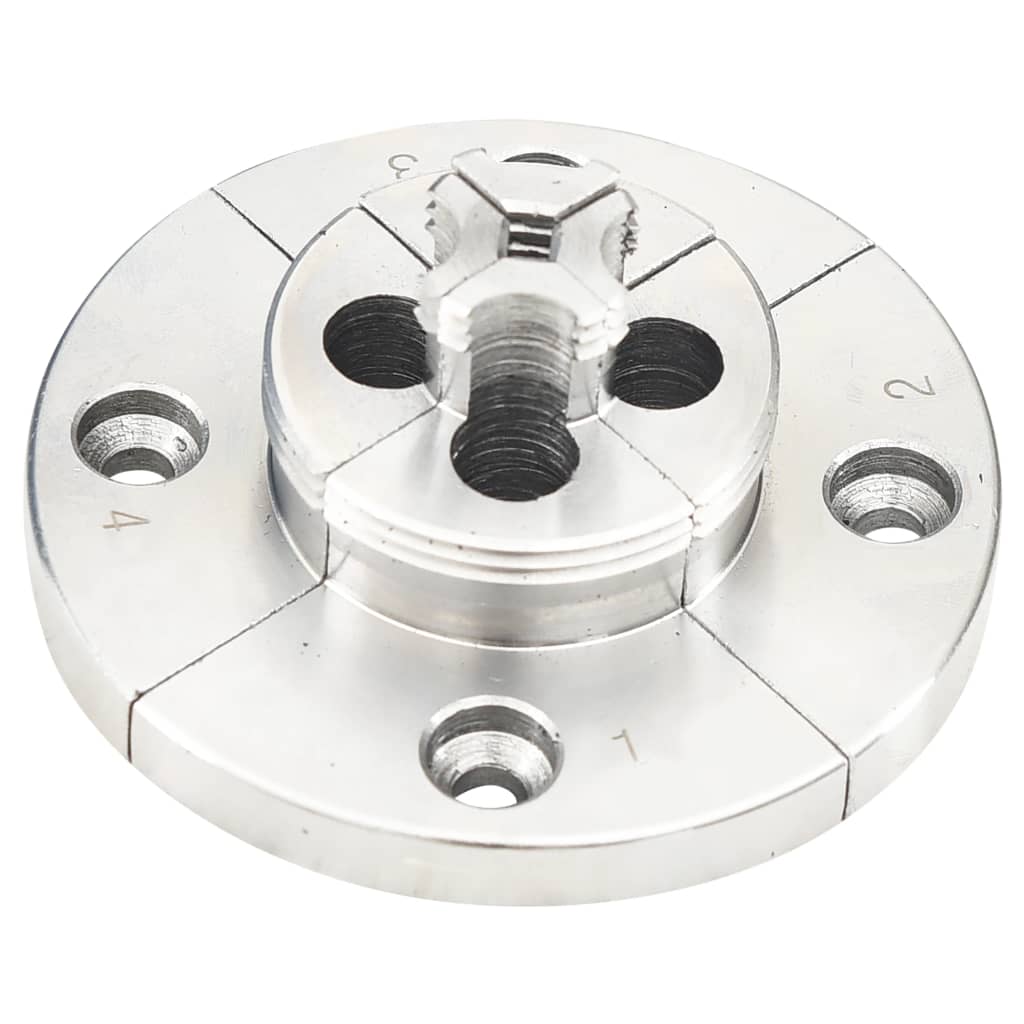

- #1 Step jaws: 2.5 mm - 35 mm

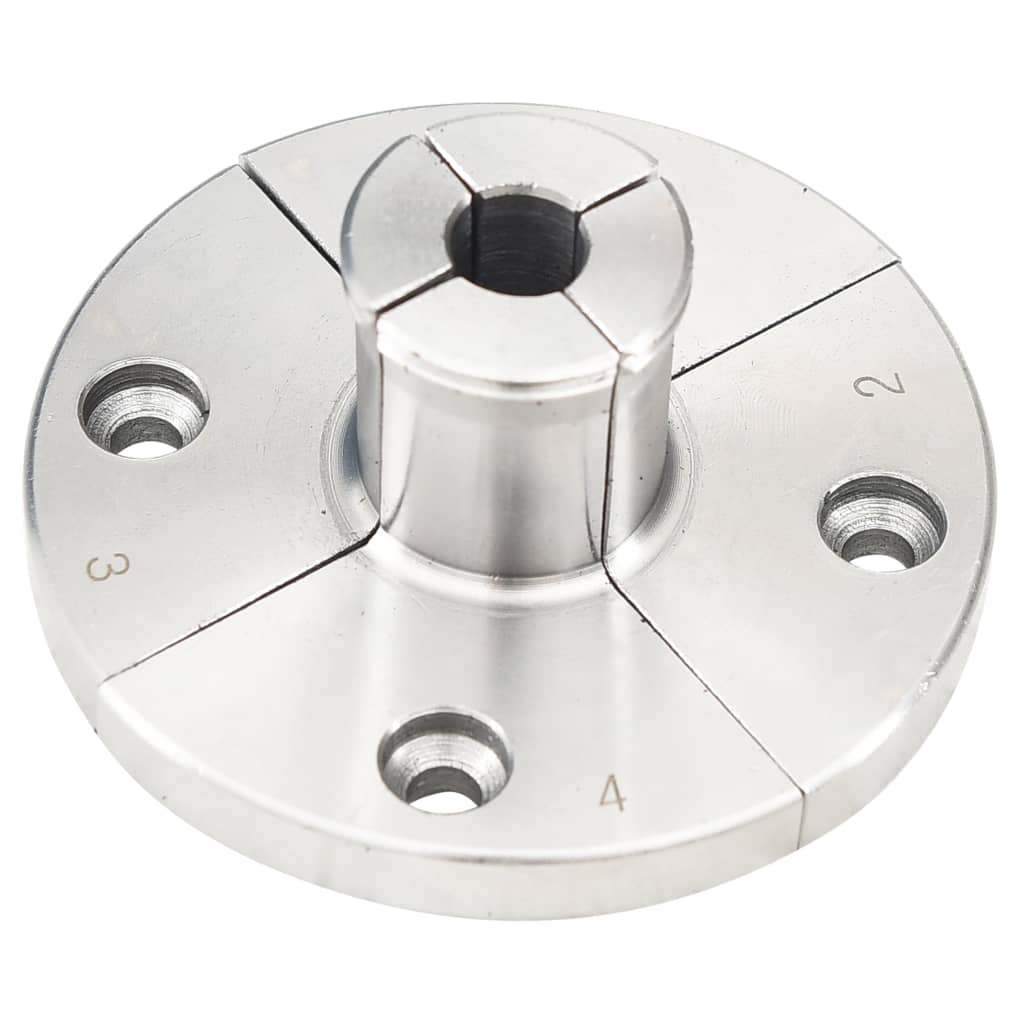

- #2 Round jaws: 32 mm - 64 mm

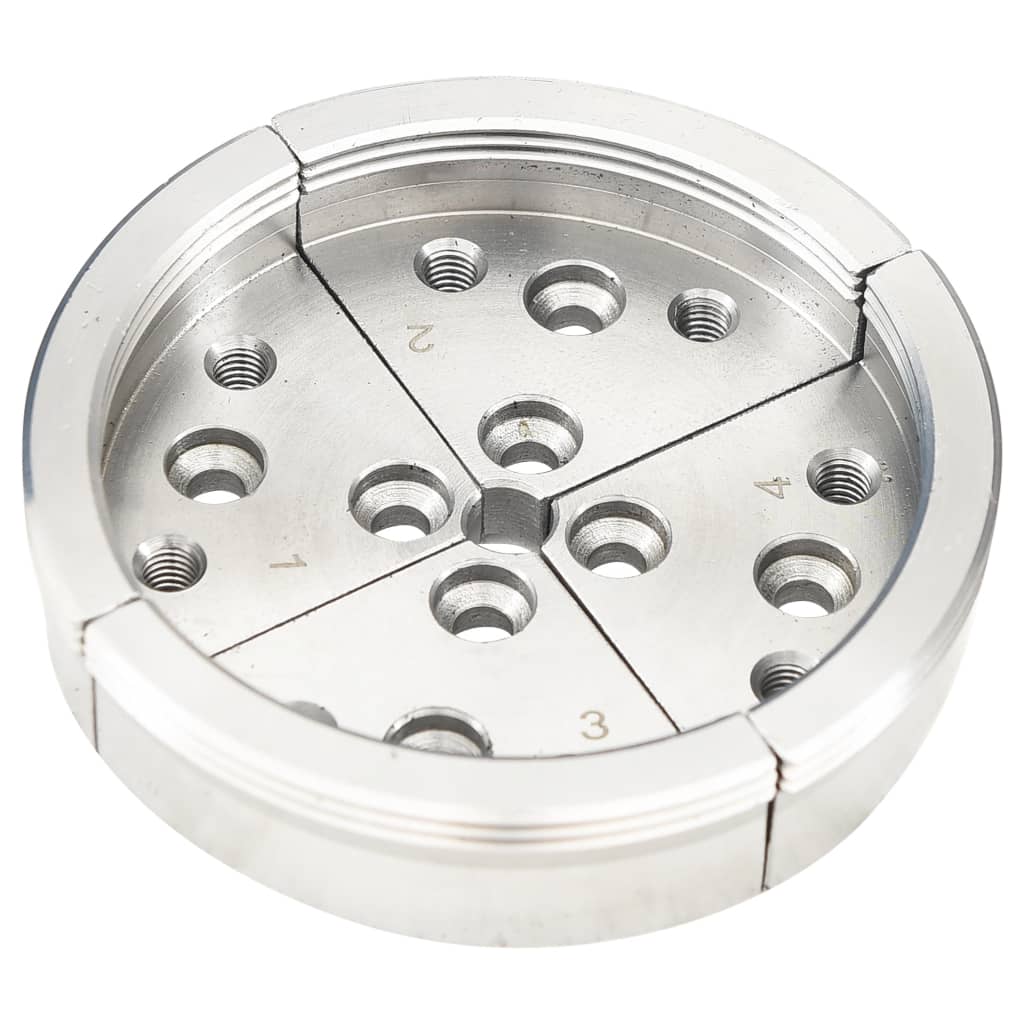

- #3 Round jaws: 76 - 108 mm
- #4 Pin jaws: 9.5 mm - 45 mm

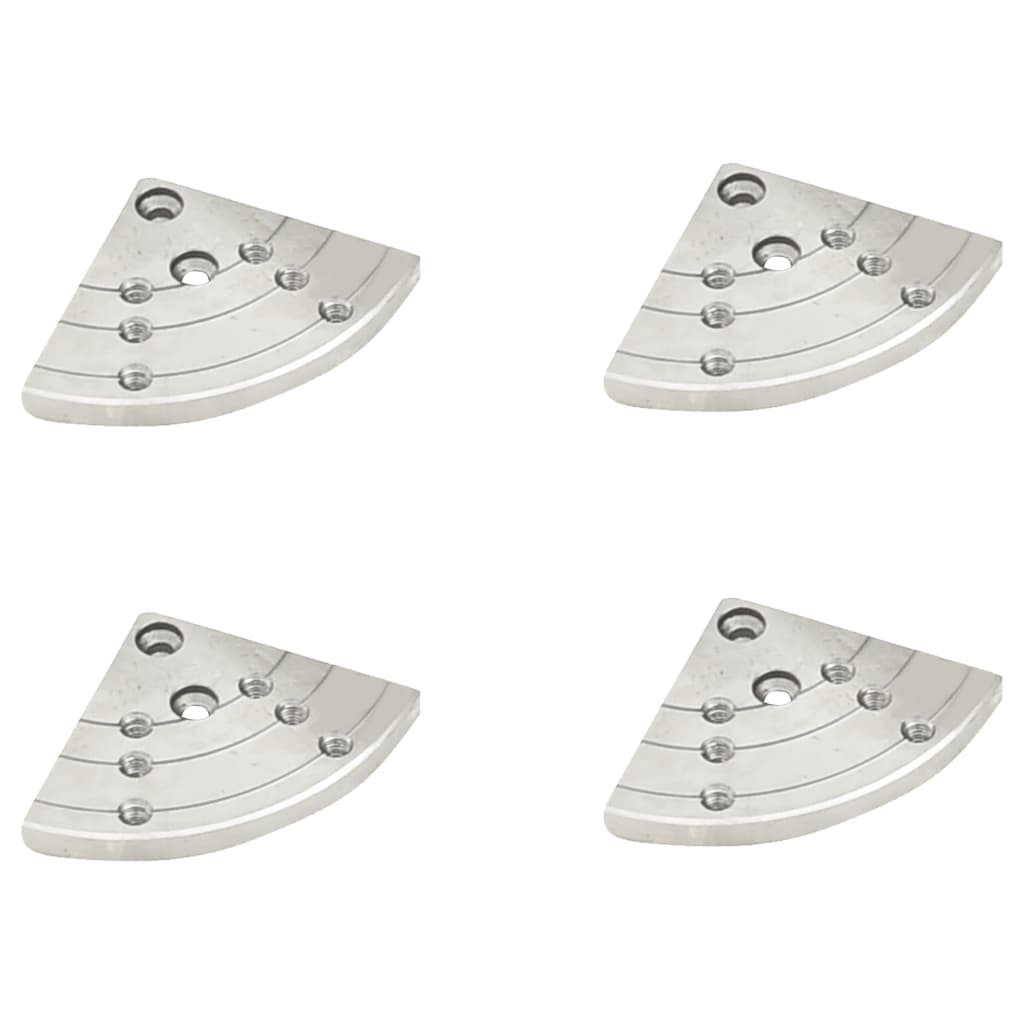

- # 5 Flat jaws: 73 mm
- Clamping range (outside):
- #1 Step jaws (lower step): 38 mm - 73 mm
- #1 Step jaws (lower step): 19 mm - 51 mm
- #2 Round jaws: 45 mm - 80 mm
- #2 Round jaws: 90 mm - 124 mm
- #4 Pin jaws: 25 mm - 60 mm
- # 5 Flat jaws: 130 mm
- Indexed backplate: 24 and 36 positions
- Thread: 1" x 8TPI
- Max. speed: 3000 rpm
- Net weight: 4.5 kg
- Can accommodate round and square workpieces
- Assembly required: Yes

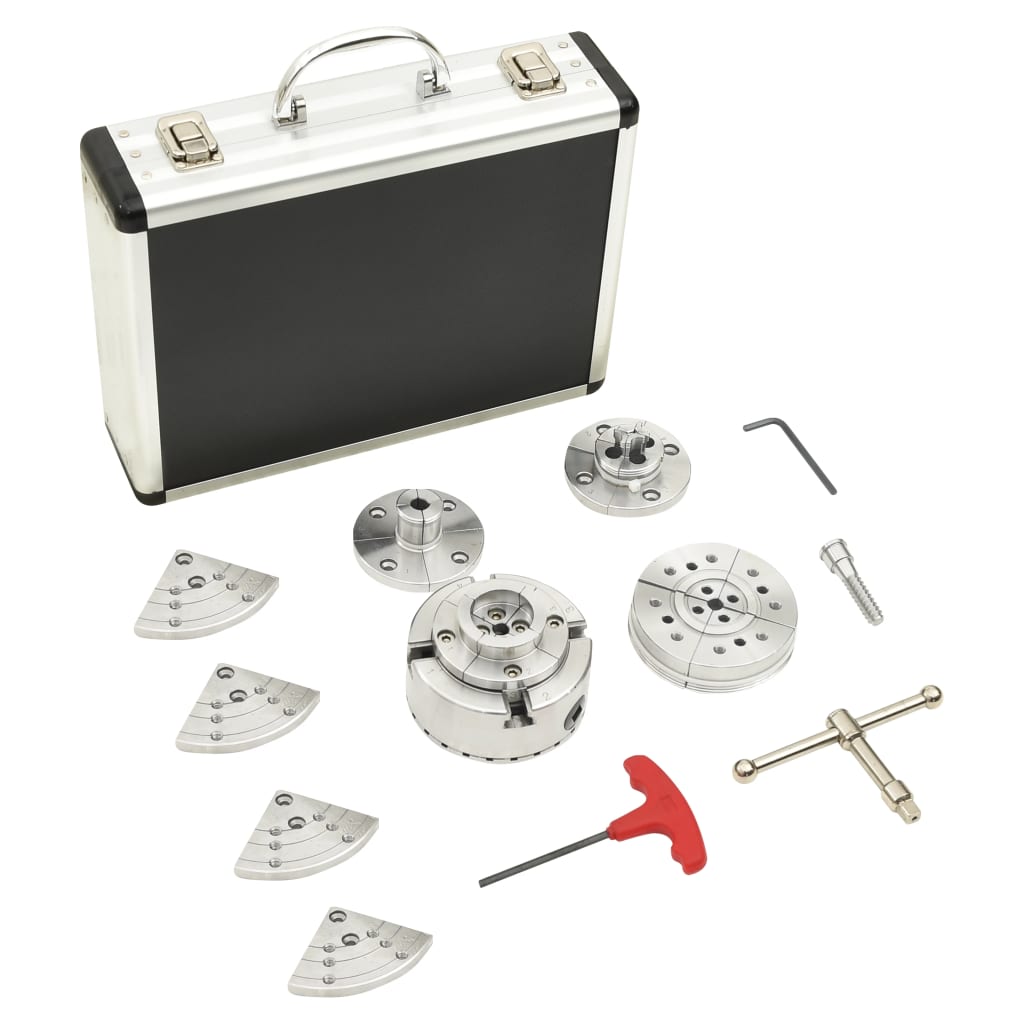

- Delivery includes:
- 1 x chuck body

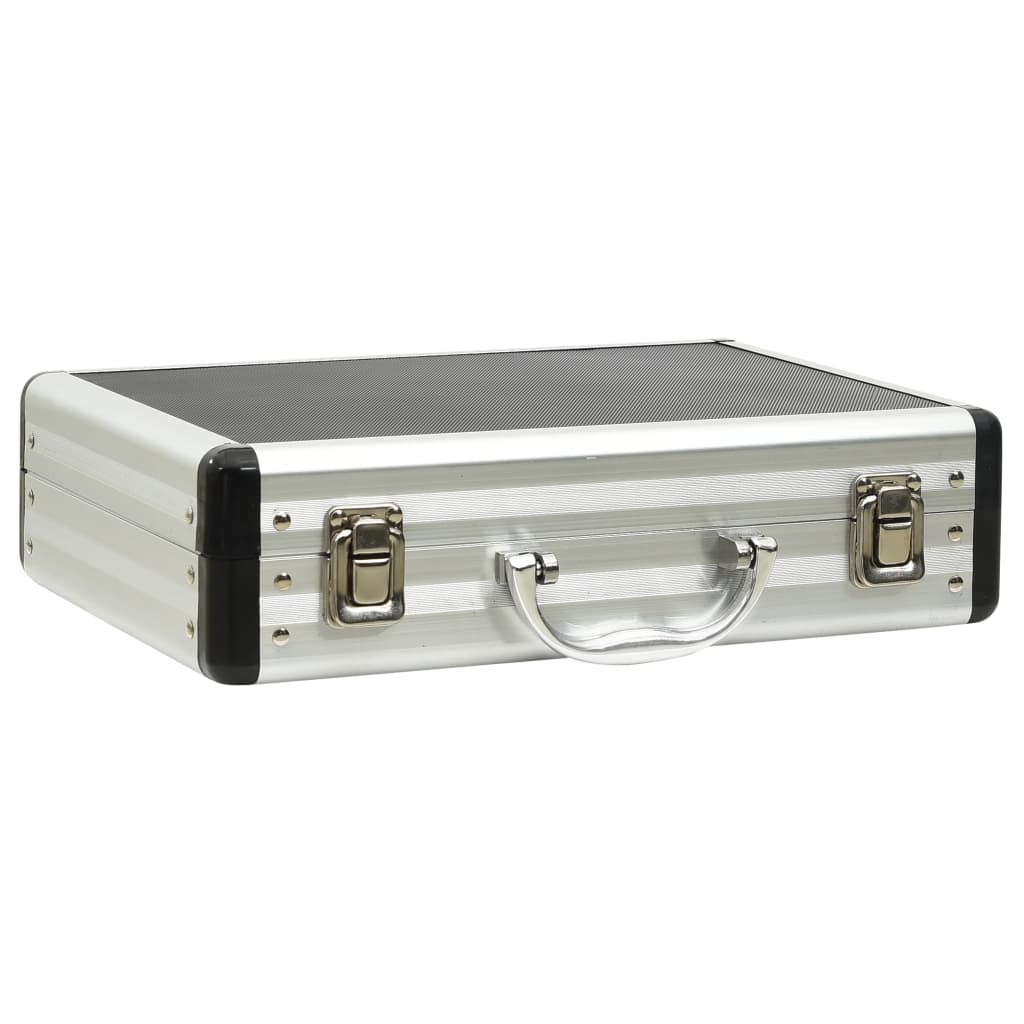

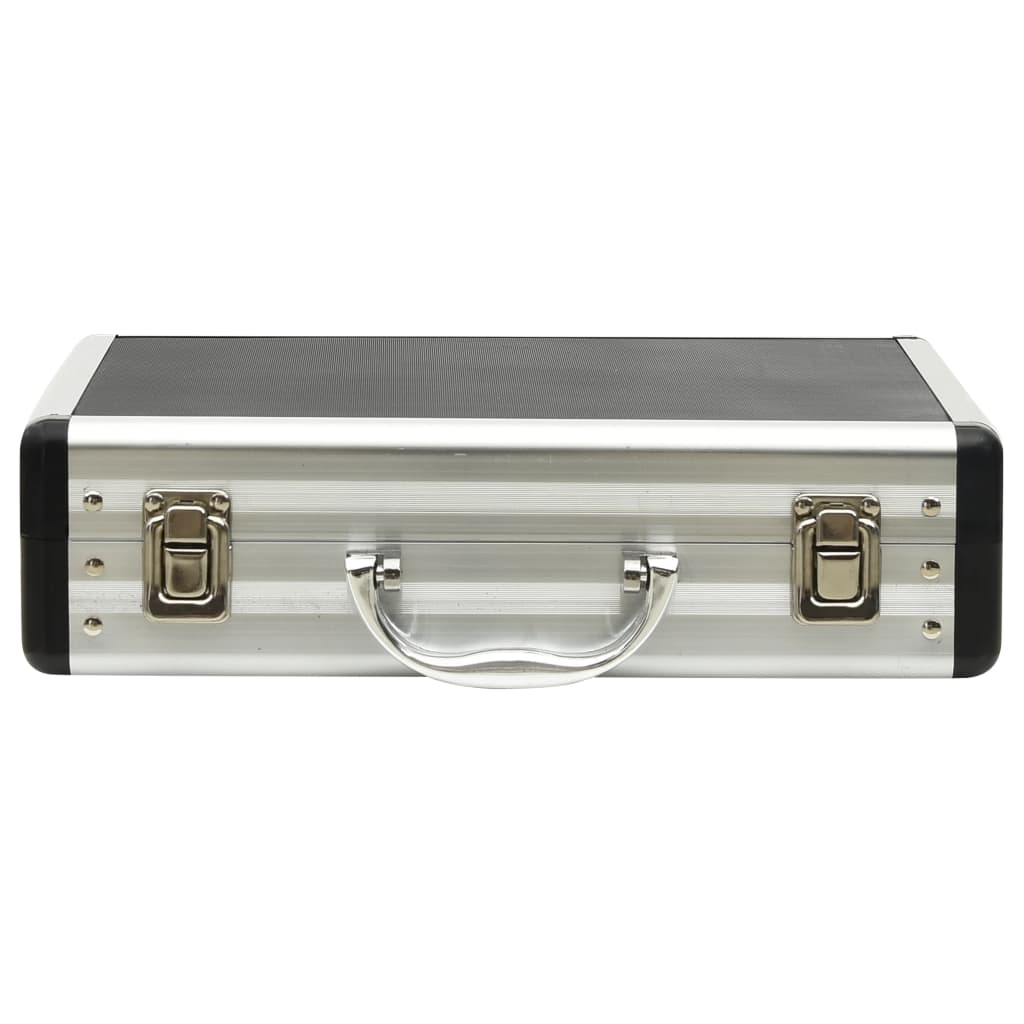

- 1 x carrying bag
- 1 x T-handle hex key 4 mm
- 1 x chuck key 8 mm
- 1 x woodworm screw
- 1 x hexagon wrench
- 4 x #1 stepped jaw
- 4 x #2 round jaws
- 4 x #3 round jaws
- 4 x #4 pin clamp
- 8 x flat head screw M5 8x8
- 8 x handle bolts 13 mm, M6 1x6
- 8 x handle bolts 18 mm, M6 1x6
